Leisure Smart Meters
Direct Connection Units for Lodges, Caravans and Park Homes
Direct Connection Unit
This Direct Connection Unit is a hardwearing, cost effective MID approved metered connection unit specifically designed to provide a 16A, 32A or 63A electrical supply via its direct connection facility to the residential home.
Pre-installed with Metpow’s Smart Metering technology
Wireless LoRaWAN connections
16A, 32A & 63A outputs available
Built-in overload & 30mA fault current protection
IP65 weatherproof polycarbonate enclosure
Built-in cable terminals
Switchgear access flap
Optional galvanised mounting post
Easy to install & maintain
Key Features
IP65 Weather Proof
Metpow Guest Payment App
Strong and Durable
LoRaWAN Wireless Meter
The Next Generation of Metering
Perfect electrical hook-up units for your residential park/holiday home destinations
-
MATERIALS
Polycarbonate Enclosure

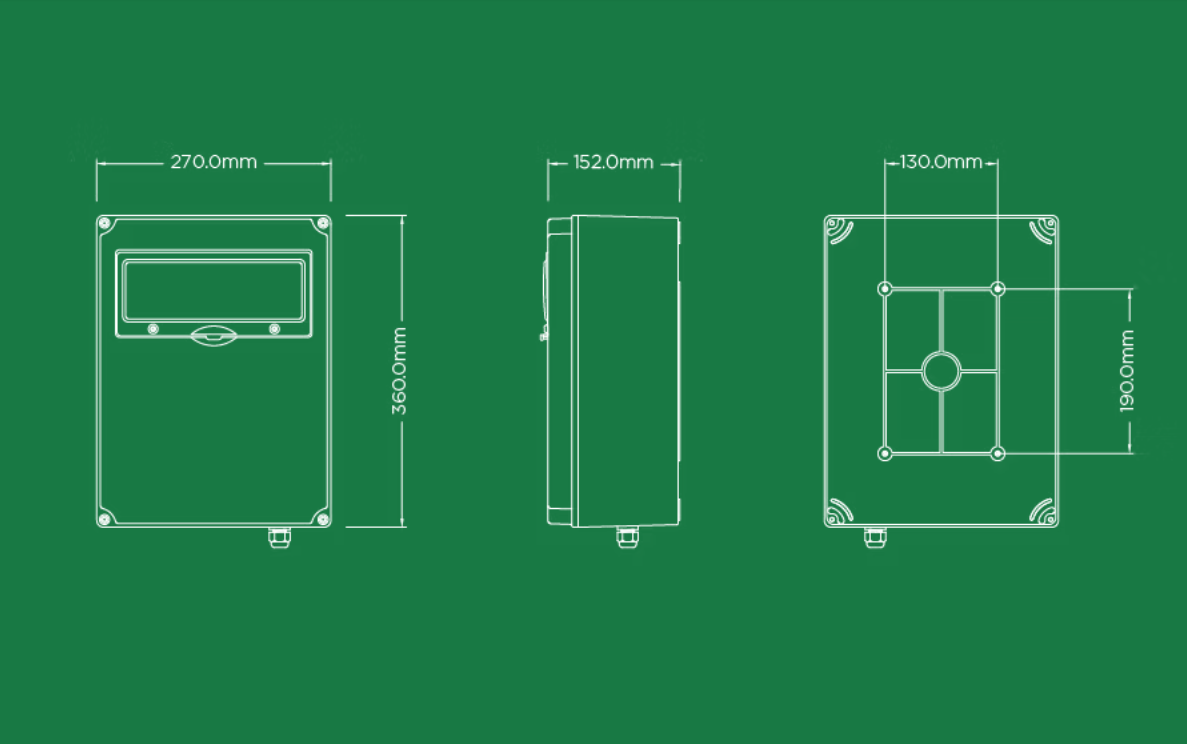

DIMENSIONS
270mm (W) x 360mm (H) x 152mm (D)
IP RATING
Enclosure: IP65
OUTPUT
16A, 32A & 63A
OVERLOAD & FAULT CURRENT PROTECTION
16A 30mA RCBO | 32A 30mA RCBO or C63A 1pole MCB, 63A 30mA RCD
-
Galvanised ground mounting post (product code LSAF0060)
Photocell kit to control park lighting
-
Cost-Effective Upgrades: Transform existing sockets without replacing infrastructure.
Enhanced Guest Satisfaction: Provide a seamless, user-friendly energy solution that builds trust and reduces complaints.
Regulatory Compliance: Meet Ofgem’s Maximum Resale Price (MRP) standards effortlessly.
Scalable Solution: Add retrofitted meters as your site expands, with no limits to the number of connected devices.
“We thought a system like this would be out of reach, but the cost was far lower than we expected.”
Graham Jennings, Watergate Bay
Low Cost, High Impact
Meet The Range
Hook-Up Connection Units
Direct Connection Units
Quantum Touring Pedestals
Classic Touring Pedestals
CALCULATE YOUR SAVINGS
Recover the cost of your investment
Metpow allows businesses to recoup their investments with controllable sub-metering fees that are set by you. The investment into new systems can be recovered in a just a few years. Track your cost recovery with Metpow.
