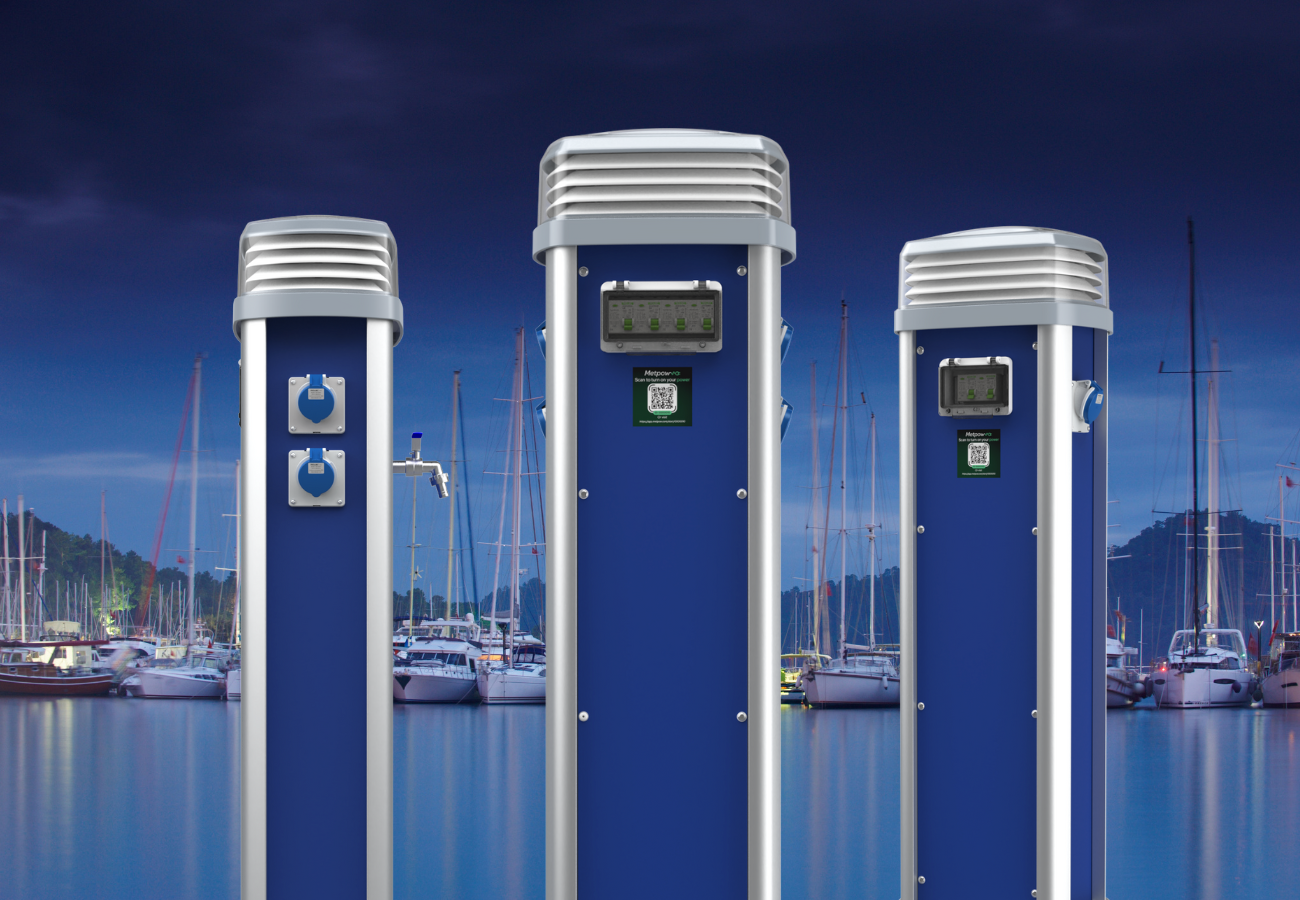

Quantum Marina Pedestals for Inland and Coastal Marinas

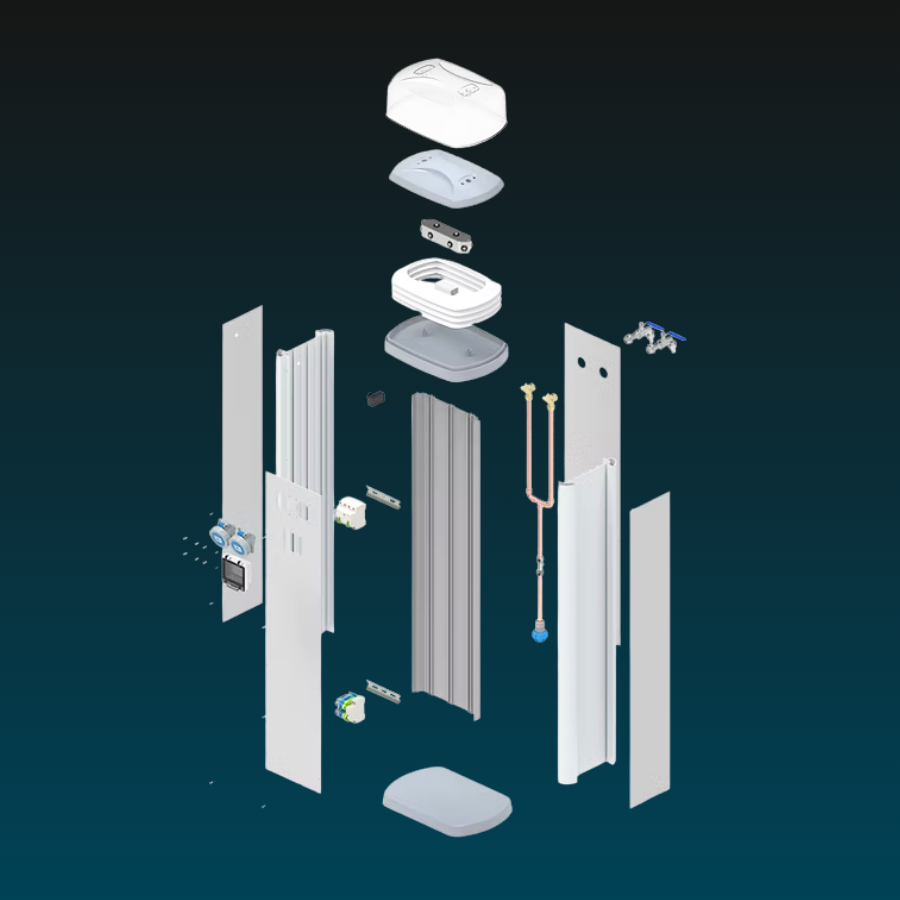

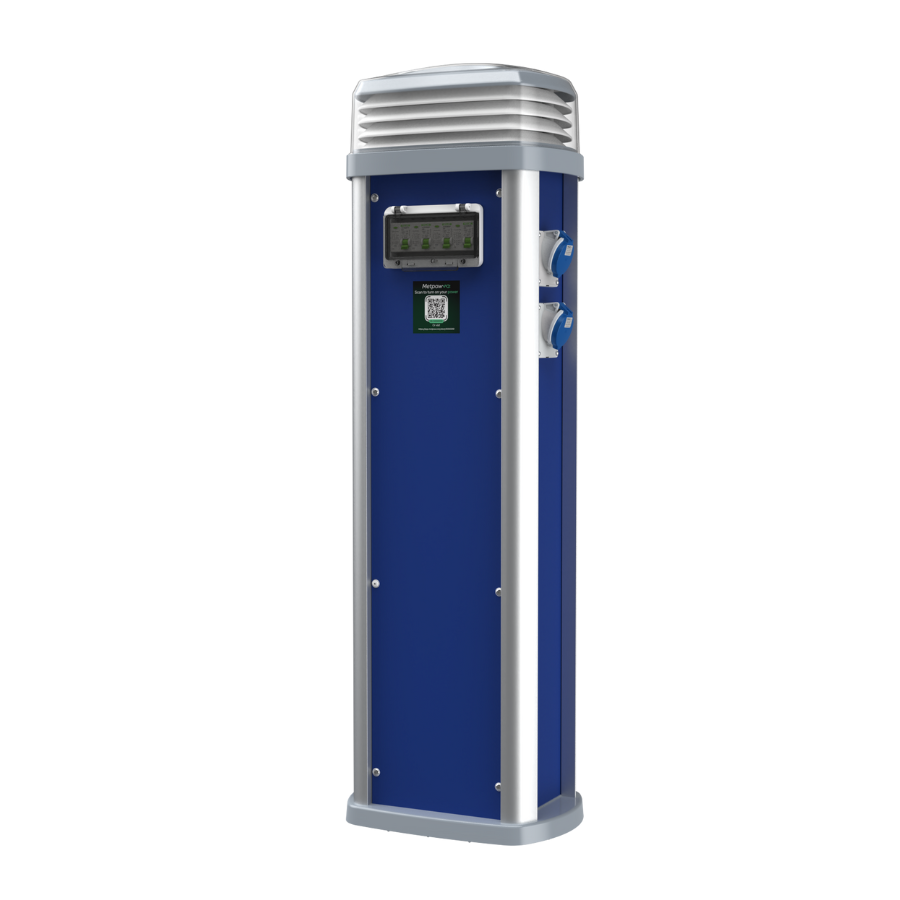

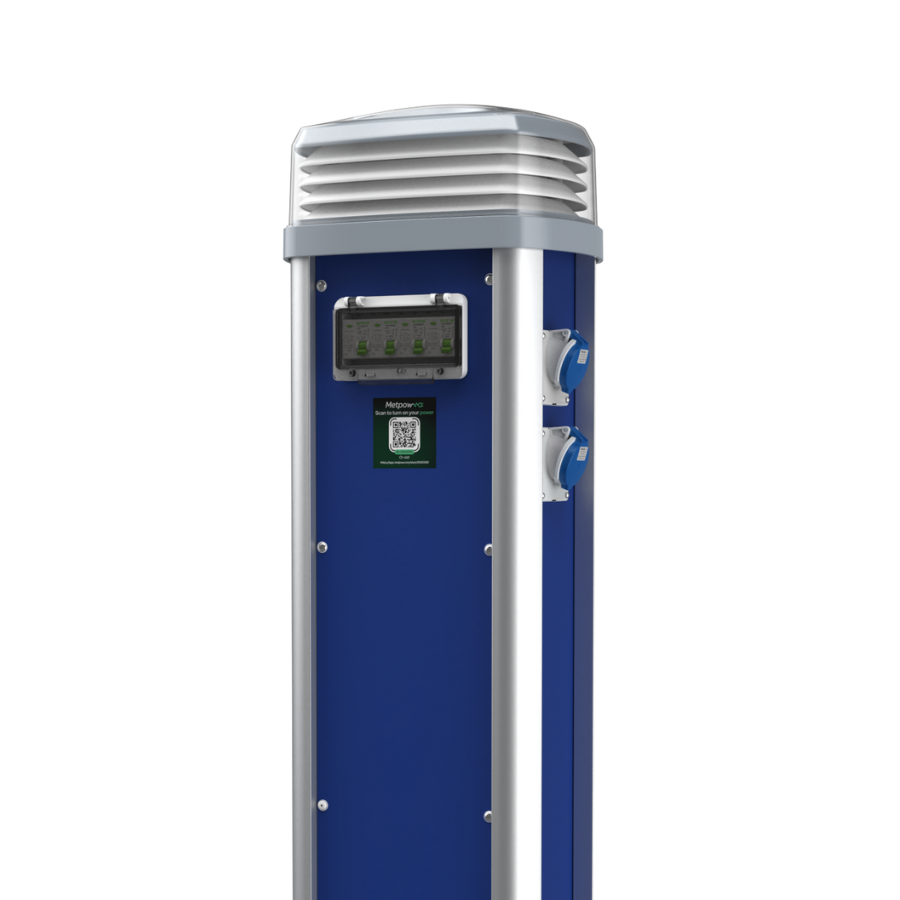

The Quantum Pedestal Range
A modern approach to your marina utility services. The anodised aluminium Quantum Pedestal range has proven exceptionally popular since its launch in early 2016, with over 18,000 pedestals sold to date across the world.
Pre-installed with Metpow’s Smart Metering technology
25 micron marine grade 6065 anodised extruded aluminium body
High impact resistant UV stabilised polycarbonate lighting lens assembly
360 degree low energy LED lighting
Heavy duty polycarbonate base
Fully segregated electric, water and lighting compartments
Front, back and side panel material variants: steel, composite, aluminium
Front, back and side panel colour variants

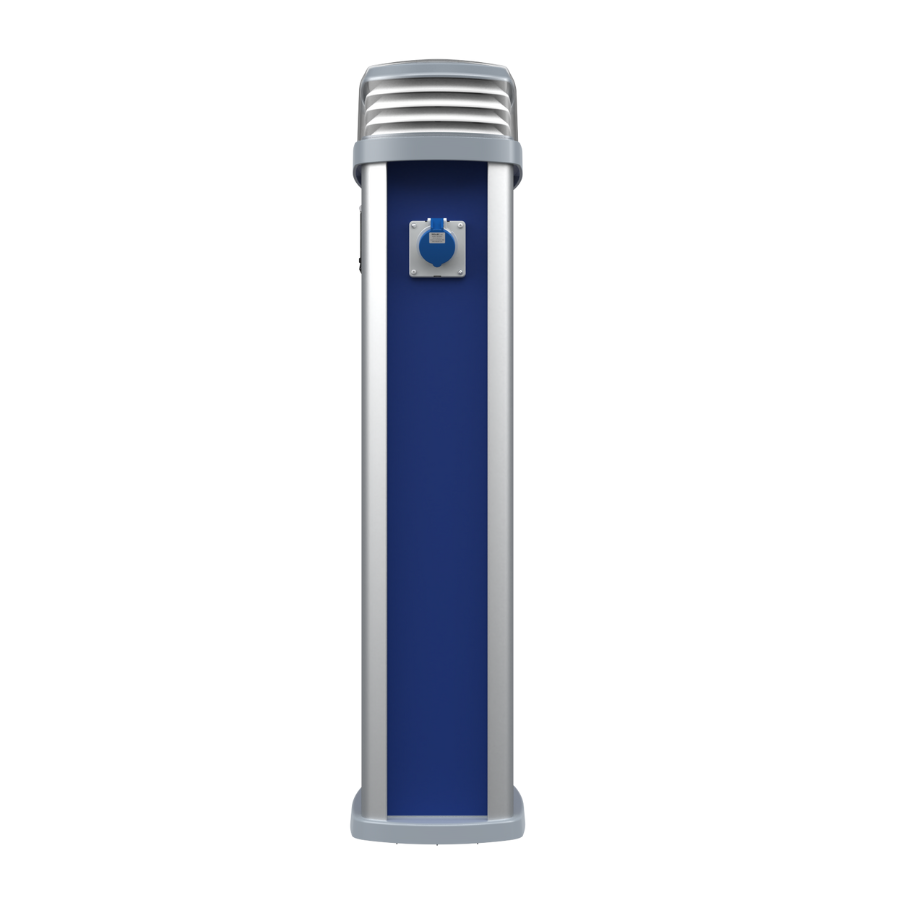

16A IP44 sockets

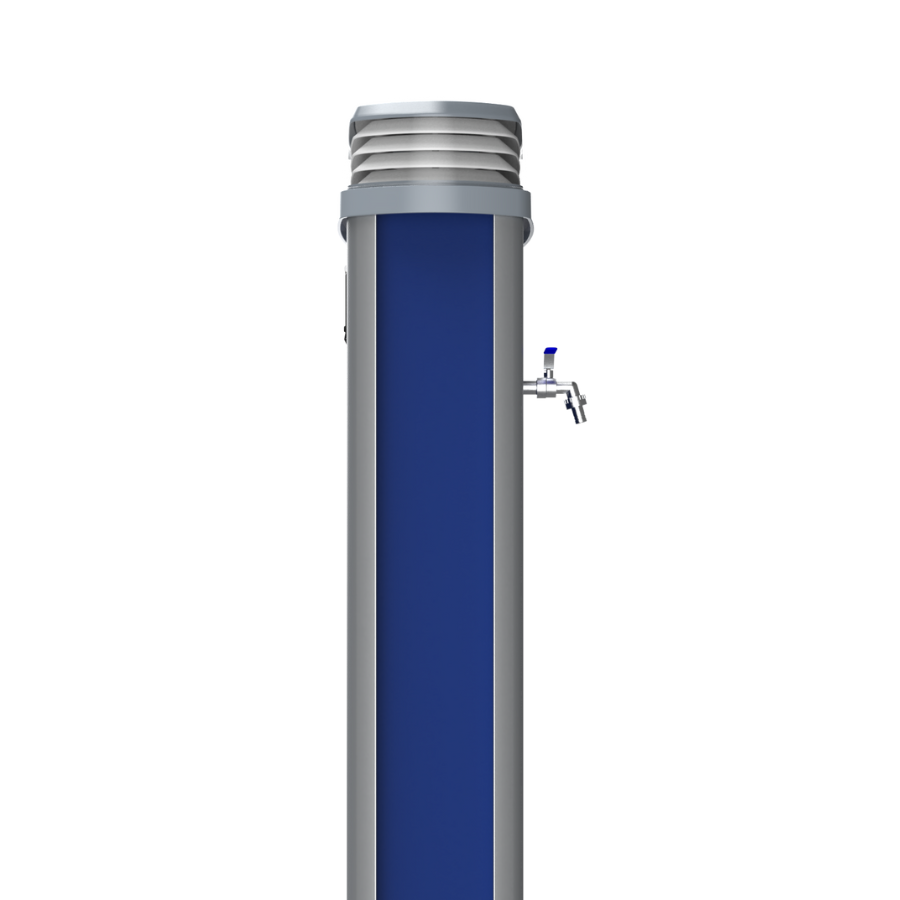

1/2”water tap
Available in 1, 2, 3 and 4way versions
Key Features
IP66 Weather Proof
Metpow Guest Payment App
LED Illumination
LoRaWAN Wireless Meter
The Next Generation of Metering
The Quantum design fuses the highest quality materials from Rolec’s range with the affordability of an entry level unit. Versatile and economical, the Quantum provides the marina industry with a powerful and impactful combination of strength and adaptability for all new developments.
-
Materials
FR-VS UV Stabilised Polycarbonate | Alloy 6063 BS EN 10204:2004, BS EN 573-3:2013 & BS EN 755-2:2016

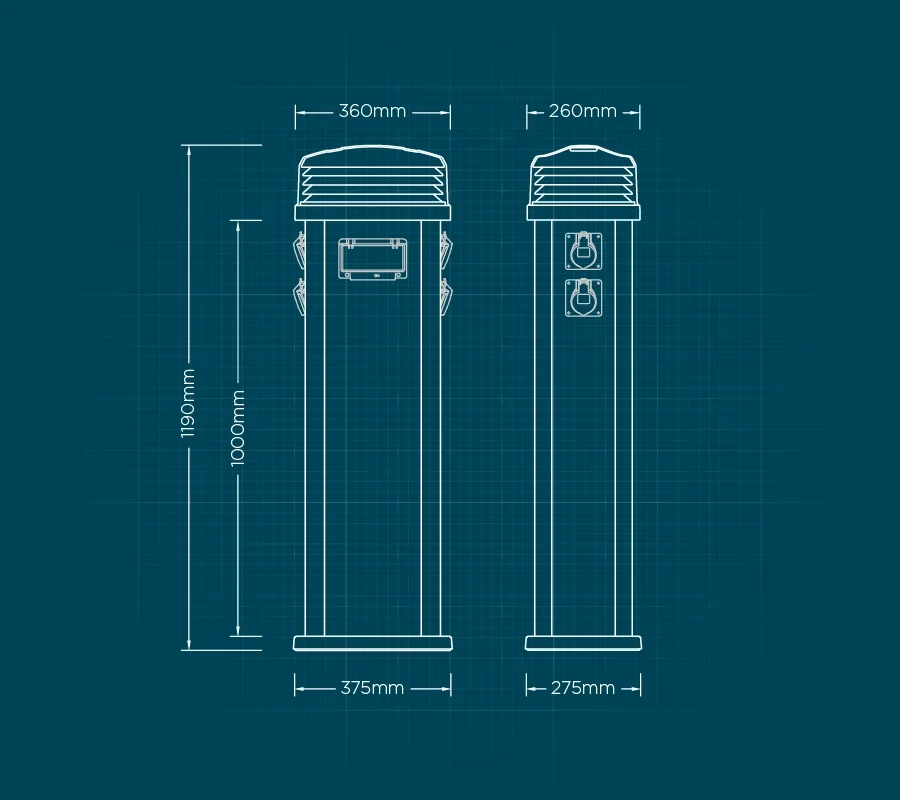

Dimensions
(W) 375mm x (H) 1190mm x (D) 275mm
IP Rating
IP66 BS EN 60529
Overload & Fault
Current Protection: 16A 30mA RCBO(s), 100A isolator (model dependent)
-
LWCS0100 Outdoor LoRaWAN Gateway Kit
RFID0050 Programmed LoRaWAN RFID Master Card
LSAF0010 To Add | Photocell And 6A MCB Facility
GMQR0011 Quantum Galvanised Steel Ground Mounting Base
MAFA0900 To Add | Ethernet Data Port
Branding & colour options
-
Cost-Effective Upgrades: Whether its 1 meter or 1000. Metpow’s system can scale to meet your business needs.
Enhanced Guest Satisfaction: Provide a seamless, user-friendly energy solution that builds trust and reduces complaints.
Regulatory Compliance: Meet Ofgem’s Maximum Resale Price (MRP) standards effortlessly.
Scalable Solution: Add retrofitted meters as your site expands, with no limits to the number of connected devices.
“We thought a system like this would be out of reach, but the cost was far lower than we expected.”
Graham Jennings, Watergate Bay
Low Cost, High Impact
Meet The Range

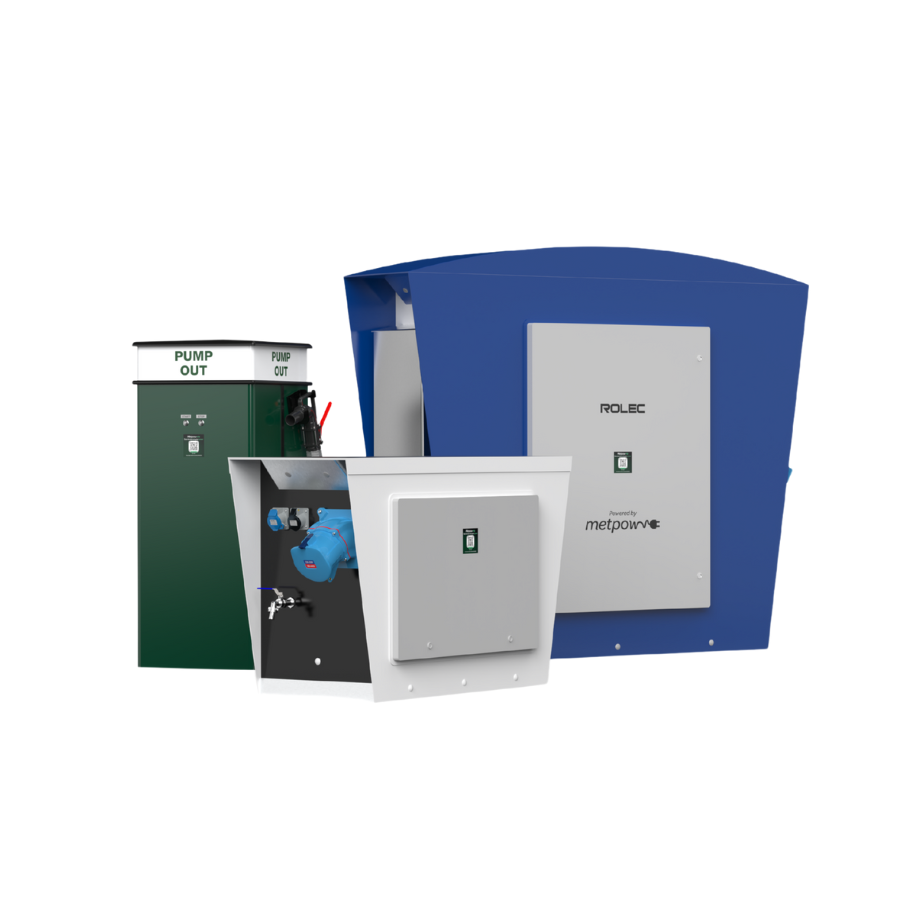

Distribution units and Mega Master
